Home Use Upper-Arm Blood Pressure Monitor

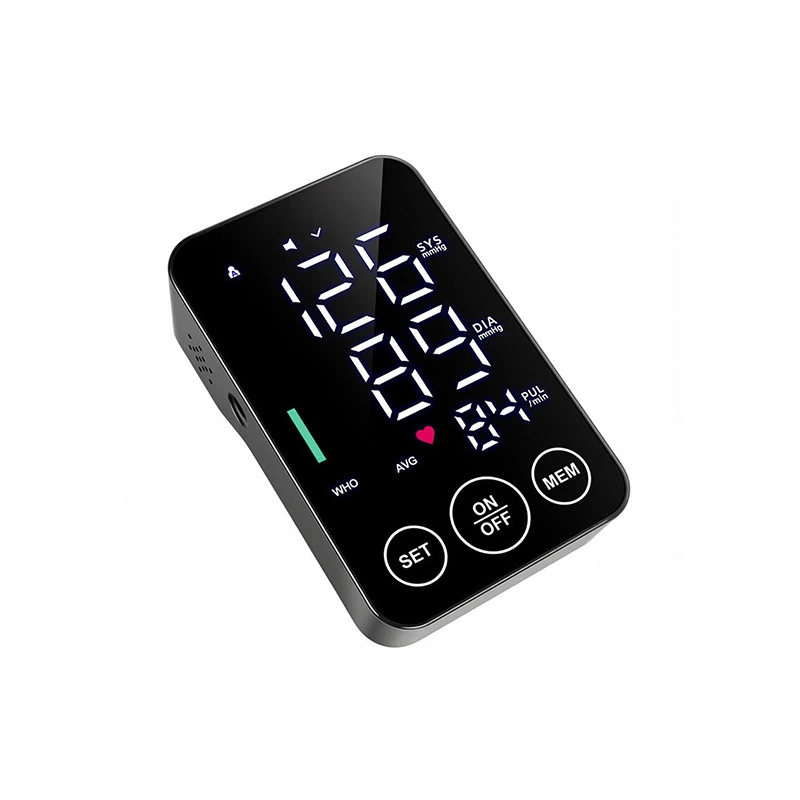

The CS90 durable Home Use Upper-Arm Blood Pressure Monitor is equipped with a large 3.7-inch LED display with a field of view of 67 by 86 millimeters, ensuring that even in dimly lit rooms, the systolic, diastolic, and pulse numbers are clear and easy to read. This large reading reduces interpretation errors and allows elderly people or busy clinic staff to immediately verify the results without the need to squint or reposition the device. Each measurement is supported by advanced irregular heartbeat detection, which can alert users to possible arrhythmias during the testing cycle, adding a critical security layer to routine monitoring.

Product Certification

The Home Use Upper-Arm Blood Pressure Monitor is produced strictly in accordance with medical grade household appliance standards, with complete qualifications and strong compliance, meeting the requirements for entry into mainstream countries and platforms worldwide.

Core medical qualifications: EU CE-MDR (Class IIa Medical Device Certification), US FDA 510 (k) filing, domestic NMPA Class II Medical Device Registration Certificate, in compliance with medical device access standards.

Accuracy and safety standards: Strictly follow the EN ISO 81060-2 international clinical accuracy standard for blood pressure monitors and IEC 60601-1 medical electrical safety standard, with accurate measurement data and safe equipment use.

Environmental and system qualifications: Home Use Upper-Arm Blood Pressure Monitor holds RoHS and REACH environmental certifications; The factory has ISO 13485 medical device quality management system certification and can provide BSCI and Sedex factory inspection reports to meet the audit requirements of large supermarkets and brand customers.

Feature

The integrated irregular heartbeat detection works silently in each session, marking any abnormal rhythms without requiring users to take additional steps. Complementing this feature is a tri color column, Home Use Upper-Arm Blood Pressure Monitor, which provides real-time visual risk stratification based on your systolic and diastolic blood pressure values. The alarm function further ensures that relevant results will not be ignored, making CS90 suitable for daily self-monitoring in home environments where professional explanations may not be immediately available.

The device is powered by four AAA batteries with a total voltage of 6 volts DC. Before replacement, it can perform approximately 464 consecutive measurements at room temperature of 25 degrees Celsius. The automatic shutdown function is activated after one minute of inactivity to maintain battery life during prolonged periods of inactivity.

The width of CS90 is only 130 millimeters, the depth is 100 millimeters, and the height is 49 millimeters. Excluding the battery, the total weight is approximately 469 grams. Its IP21 rating indicates that it can prevent solid objects larger than 12.5 millimeters and vertically falling water droplets, ensuring reliable performance in typical household and clinical environments.

Two intelligent sensors work together to improve measurement accuracy. The cuff wear indicator confirms that the armband is firmly secured with the correct tension before starting inflation, and during the counting phase, as long as the device detects excessive body movement, a hold still symbol will appear on the screen.

An integrated irregular heartbeat detection system continuously analyzes pulse intervals during each measurement cycle. When the device recognizes any abnormal rhythm pattern, it will immediately mark the event on the display. This function can serve as a warning mechanism for potential cardiac abnormalities, allowing users to seek medical evaluation in a timely manner, rather than relying solely on average blood pressure values.

This device provides two independent storage units, each capable of storing up to 120 complete measurement sets, with a total capacity of 240 records. This memory architecture supports longitudinal tracking of two ordinary individuals, allowing caregivers and doctors to view historical trends without manually recording each reading on paper.

The Home Use Upper-Arm Blood Pressure Monitor is equipped with a 3.7-inch monochrome LED backlit screen, measuring 67mm by 86mm. This spacious viewing area allows users to read systolic, diastolic, and pulse values at a comfortable distance without causing eye fatigue. High contrast lighting ensures excellent visibility in both bright clinical environments and darker home environments, making it particularly suitable for elderly users or busy shift workers who require quick confirmation of results.

Technical Specifications

Collaboration Cases

Kangfu Medical specializes in high cost performance household products. We accept various cooperation models such as bulk procurement and supermarket supply, and provide long-term services to customers in multiple regions around the world.

We have been supplying offline chain pharmacies and daily necessities supermarkets in Europe and North America for a long time, mainly focusing on standardized household basic products, with complete compliance and stable quality, and supporting year-round return orders for replenishment.

Among them, we also have deep connections with sellers on platforms such as Amazon, Shopee, Lazada, etc., providing a complete set of compliance qualifications, multilingual manuals, neutral packaging, supporting overseas warehouse distribution and one-stop shipping supporting needs.

FAQ

Q1: How accurate is the CS90 compared to a clinical mercury sphygmomanometer?

The Home Use Upper-Arm Blood Pressure Monitor meets international home-use standards: ±3mmHg pressure error, ±5% pulse error, clinically certified for daily tracking. Consult doctors for formal diagnosis and regular clinic calibration.

Q2: Can two different people use this monitor without mixing up their records?

Yes. The CS90 has two separate memory banks (120 records each) for User 1 & User 2. A Guest Mode is available for temporary use but stores no data after shutdown.

Q3: What does the irregular heartbeat symbol mean and should I be worried?

The icon appears when pulse rhythm varies over 25%. It may result from movement or coughing during testing. If it occurs frequently, show your records to a doctor for cardiac checkup.

Q4: Why do I get different readings when I measure back to back?

BP naturally varies due to posture, cuff tightness and breathing. Rest 5 mins before measuring and wait 1 min between two tests for artery recovery. The CS90's motion reminder alerts you of body movement during measurement.
