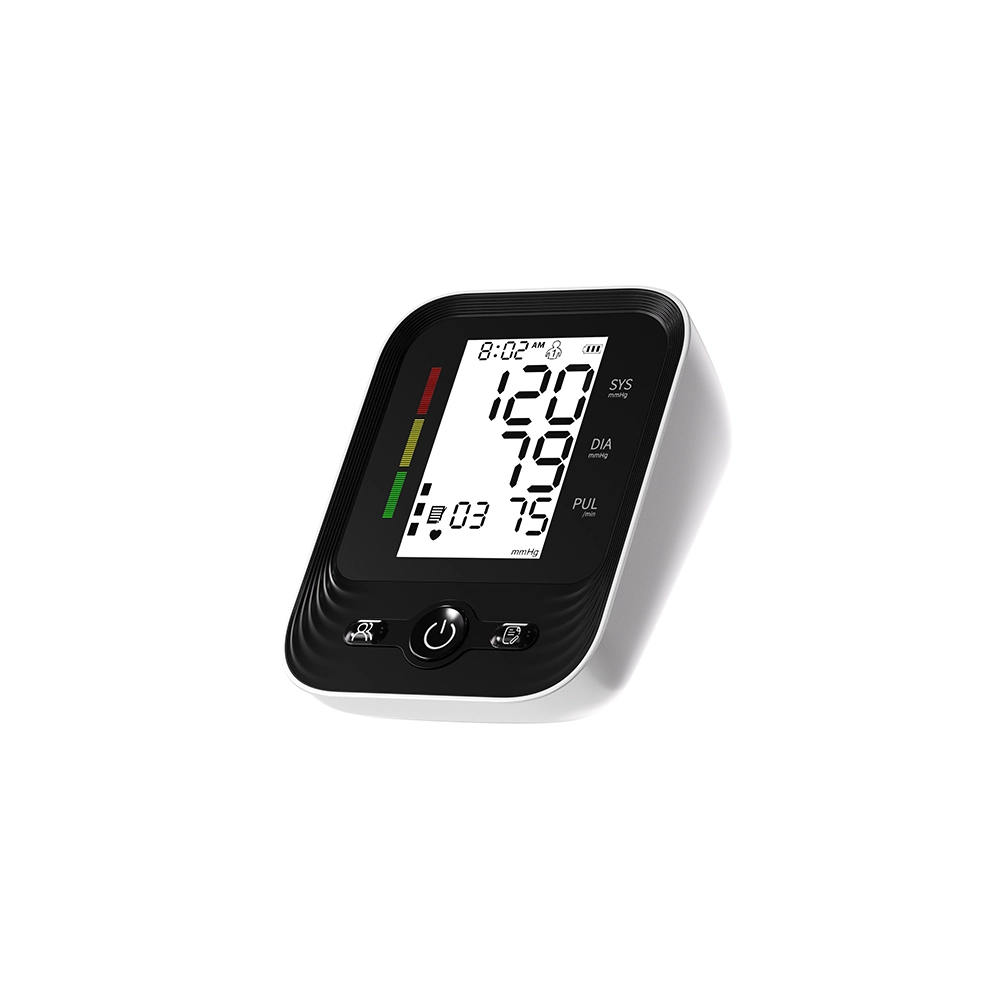

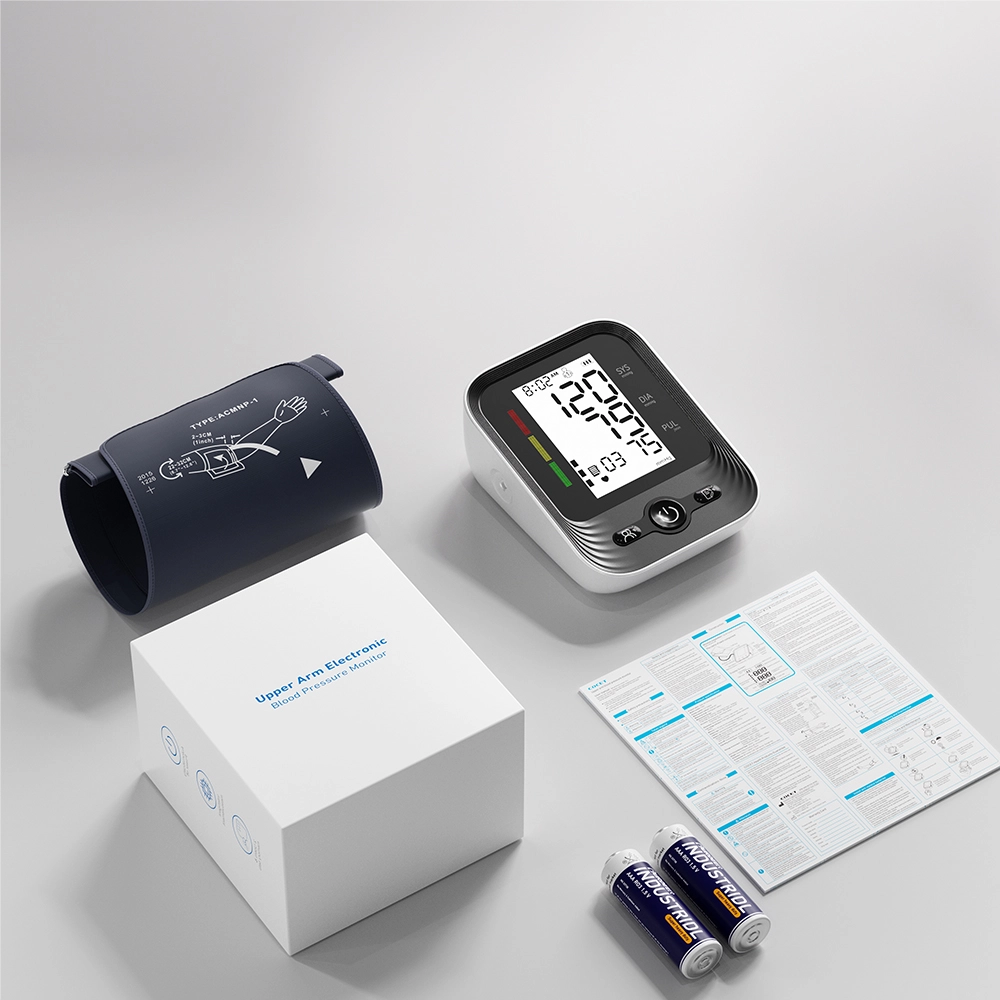

Type-C Rechargeable Upper-Arm Blood Pressure Monitor

You can monitor your cardiovascular health status through advanced monitoring functions. Kangfu Medical's high-quality CS86 Type-C Rechargeable Upper-Arm Blood Pressure Monitor not only measures blood pressure (0-295 mmHg), but also detects irregular heartbeats and provides a beat by beat result indicator. It can store up to 2 × 120 sets of memory records for two users, plus 1 set of average values from the last 3 measurements, to smooth out daily fluctuations. Each record contains a date and timestamp for tracking trends over time or sharing data with your healthcare provider.

Features

You only need to press the [Start/Stop] button on the Type-C Rechargeable Upper-Arm Blood Pressure Monitor to stop the measurement or setup process at any time. This intuitive control allows you to have complete control in every session, making the device very user-friendly. Even for elderly people or first-time users. No complicated menus, no chaos; Just press and leave.

CS86 continuously monitors your pulse rhythm during the measurement process. If two or more irregular rhythms are detected, irregular heartbeat symbols will appear on the display. This warning function can help you identify potential arrhythmias and consult a doctor in a timely manner.

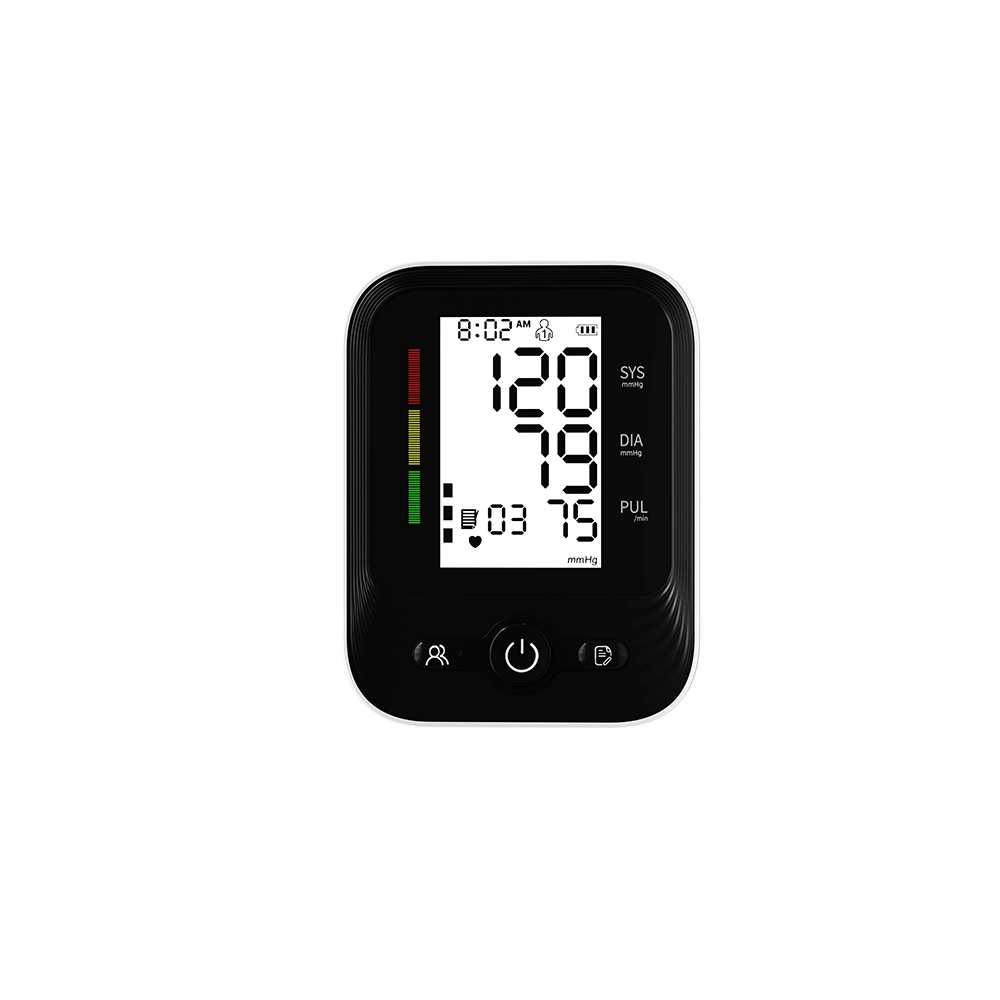

The ultra large LCD screen (44.5mm × 69.5mm) features intelligent 3-color backlight that can adjust according to your blood pressure level. Green indicates normal, yellow indicates elevated, and red indicates elevated. This real-time visual feedback allows you to explain your results at a glance without decoding numbers or charts.

Type-C Rechargeable Upper-Arm Blood Pressure Monitor Up to 240 records can be stored, with 120 sets for each user and date and timestamp. It will also automatically calculate the average of your last three measurements, providing you with a more reliable trend than a single reading. This makes it very suitable for couples or family members who share a monitor.

The protection level of CS86 is IP21, which can prevent dust and vertical water droplets from entering. This durable structure means you can confidently use it in various environments from the bedroom to the bathroom without worrying about unexpected splashes or particles in the air affecting performance.

This monitor is equipped with a modern TYPE-C port that provides convenient and universal charging. The built-in automatic shutdown function automatically shuts down the device after each measurement to save battery life. This combination can ensure that you spend less time managing power and more time focusing on your health.

CS86 covers a wide blood pressure range of 0-295 mmHg, with a maximum allowable error of only ±3 mmHg (±0.4 kPa) for all measurement points. No matter if your reading is low, normal, or high, you can trust clinical grade accuracy that complies with IEC 60601-1-2 and IEC 80601-2-30 standards.

Production and manufacturing process

1. Component incoming inspection

Conduct a full inspection of materials such as the main control chip, Type C charging module, pressure sensor, airbag, cuff, LCD screen, buttons, lithium battery, etc., verify specifications and performance, and eliminate defective parts.

2. PCB surface mount welding

SMT surface mount completes the welding of circuit board components, conducts initial functional testing of the circuit board when powered on, and investigates short circuits and virtual soldering.

3. Component assembly

Assemble the motherboard, battery, Type C charging interface, and motor air pump into the Type-C Rechargeable Upper Arm Blood Pressure Monitor main casing; Assemble the airbag, catheter, and host, assemble the buttons and display screen, and complete the hardware assembly of the entire machine.

4. Blood pressure calibration

Use a standard blood pressure simulator for pressure calibration, calibrate blood pressure and heart rate measurement parameters, correct system errors, and ensure measurement accuracy.

5. Whole machine aging & functional testing

Continuous power on aging, complete testing of all functions such as charging, power on/off, measurement, data storage, screen display, alarm prompts, etc; Remove the faulty machine.

6. Appearance inspection

Check for scratches and gaps on the outer shell, sleeve stitching, and the firmness of the catheter interface.

7. Packaging process

Insert the instruction manual, Type C charging cable, cuff, and cover with an outer packaging box; Finished products are inspected and stored in the warehouse.

Target audience

1. Type-C Rechargeable Upper-Arm Blood Pressure Monitor is suitable for individuals with hypertension and hypotension who require home monitoring of blood pressure;

2. Middle aged and elderly population, daily long-term monitoring of blood pressure fluctuations;

3. Daily health self-examination for high-risk groups related to diabetes, hyperlipidemia and cardiovascular and cerebrovascular diseases;

4. For high-pressure individuals in the workplace, simple blood pressure screening can be conducted at home or in the office;

5. Family universal health monitoring, suitable for multiple people to share in the family;

6. Use for simple screening in grassroots clinics and community health clinics.

Note: Not used as the sole basis for medical diagnosis, measurement results are for reference only; The measurement of arrhythmia population is only for reference and cannot replace medical equipment diagnosis.

Certificates & Qualifications

1. Medical device qualification

Domestic medical device registration certificate and production license are required; Export to the EU MDR CE; US FDA; UKCA, UK; Australian TGA and other medical device related certifications.

2. Safety certification

Battery and Type C charging part: IEC60601 Medical Electrical Safety; EMC electromagnetic compatibility EN60601 1 2;

3. Performance standards

Blood pressure measurement follows ISO 810602 (International Blood Pressure Monitor Standard) to verify measurement accuracy;

4. Other trade certificates

RoHS, REACH hazardous substance testing; FCC (Federal Communications Commission).

Technical Specifications

FAQ

Q1: When is the best time to measure my blood pressure?

Measure within 1 hour after waking up (after toilet, before meals and meds) to record accurate morning baseline and detect morning hypertension. Supplementary tests at noon and bedtime at fixed daily stable hours help track real BP trends.

Q2: Why do I get different readings every time I measure?

BP fluctuates thousands of times daily. The first reading is usually higher due to tension. Take 2–3 measurements; loosen the cuff, lift your arm and squeeze hands between tests to avoid false low values from poor circulation.

Q3: Why does the cuff tightening cause pain or numbness in my arm?

The cuff briefly blocks arterial blood flow for precise measurement, bringing short tingling or soreness. It's harmless and disappears once the cuff deflates.

Q4: Why do I get different readings every time I measure?

BP fluctuates thousands of times daily. The first reading is usually higher due to tension. Take 2–3 measurements; loosen the cuff, lift your arm and squeeze hands between tests to avoid false low values from poor circulation.
